| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety wooden box |
| Delivery Time: | 30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3 units per month |
| Test Chamber Dimension: | 800*800*800mm | Outer Dimension: | 1130*1250*1650mm |
|---|---|---|---|
| Temperature And Humidity: | 15~45°C, 45~75%RH | Dust (talcum Powder) Concentration: | 2~4kg/m3 |
| Test Time: | 0~999.9hr | Power: | 3ψ, 4W+G 380VAC |
| Highlight: | IPX5 Environmental Test Chambers,IPX6 Environmental Test Chambers,IPX5 Dust Proof Chamber |
||
IPX5 Environmental Test Chambers
IP Class Sand And Dust Proof Test Chamber
Product Description
Description: Sand and Dust IP Class Test Chamber is designed according to GB4706, GB2423, GB7000.1, IEC60529, ect standards and meet the IPX5 and IPX6 dust test requirements. Sand and Dust IP Class Test Chamberis mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assess corrosion degree ofsample in such sealing environment.
|
Model |
KP-1130 |
|
Test chamber dimension |
800*800*800mm |
|
Outer dimension |
1130*1250*1650mm |
|
Metal screen wire diameter |
50um |
|
Screen line space |
75um |
|
Environment temperature and humidity |
15~45°C, 45~75%RH |
|
Dust (talcum powder) concentration |
2~4kg/m3 |
|
Test time |
Dust test time set freely, 0~999.9hr |
|
Test dust |
Dry talcum powder or portland cement |
|
Test standards |
GB4706, GB2423, GB7000.1, IEC60529 |
|
Power |
3ψ, 4W+G 380VAC, 50HZ |

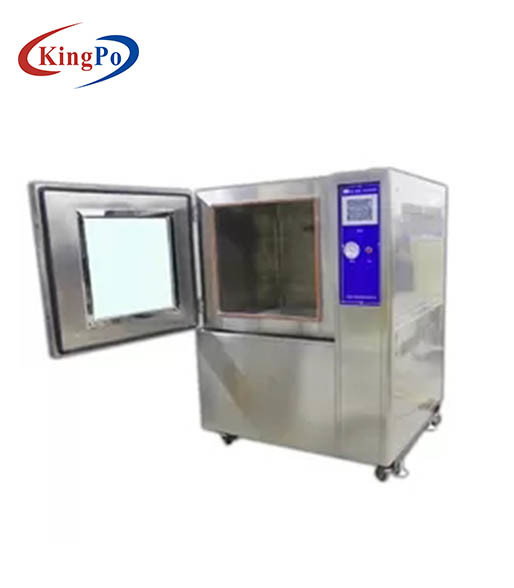

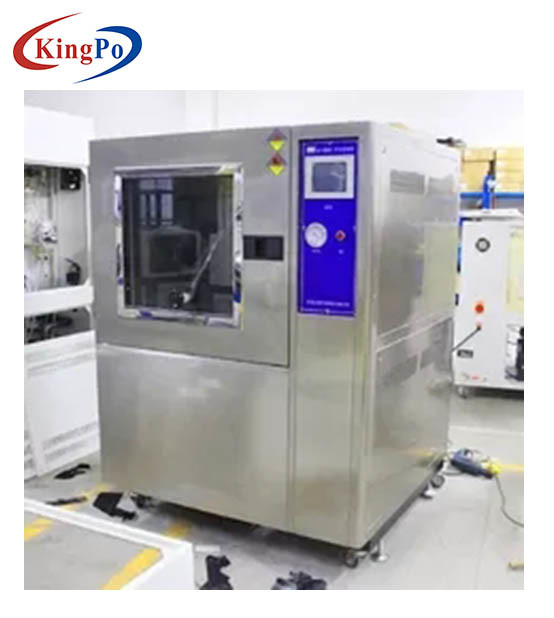

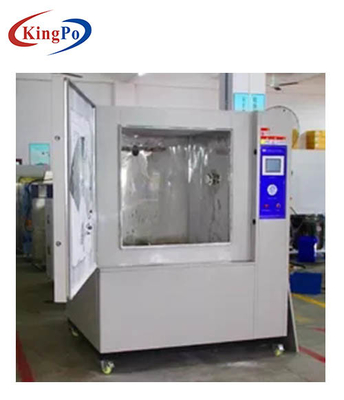

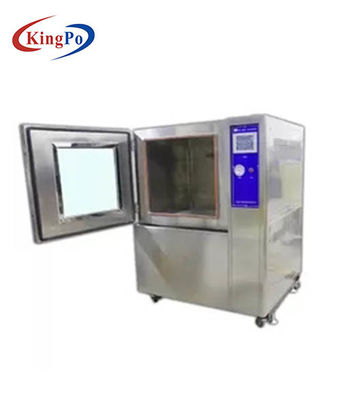

Structure: 1. LCD Touch Screen Programmable Sand and Dust IP Test Chamber Inner material: Stainless steel (SUS #304)
2. LCD Touch Screen Programmable Dust Proof Test Equipment Outer material: Powder painting steel plate

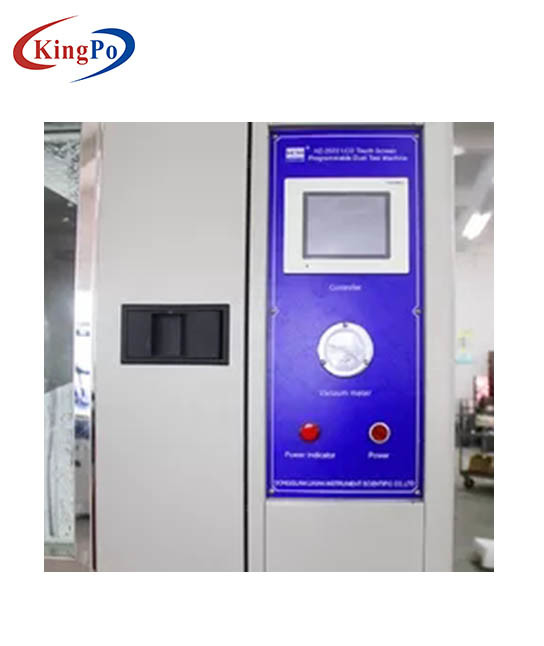

3. Dust Test Equipment use imported touch screen programmable controller, can control dust blowing
motor, dust vibration and test time.
4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust
brush to ensure easy observation of inner chamber.
5. With strong dust blowing device and vibrator to ensure informity of each blowing.
6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume
more precision.
7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test
chamber dust.
8. Anti-explosion handle, easy operation, strurdy and durable.
9. Imported high-precision electronic temperature humidity sensor and air speed sensor.
10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.
11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug.
Through this hole can connect to outer test device.
12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and
level adjustment.
13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V/20A, interval, continuous power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.
14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating
triple pieces, connecting pipe (Vacuum pump should be prepare by customer)
Installation instructions Operation manual and video available for installation & operation
