| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety wooden box |
| Delivery Time: | 30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3 units per month |
| Model: | D2XW2XH2.8M | Rated Voltage: | 380V 50HZ |
|---|---|---|---|
| Vacuum Pump(IP6X): | 0～30Kpa | Gas Pressure(optional): | 0.5～0.8MPa |
| Test Time: | 0～99h 59min | Blow Period Control: | 1s～9999min |
| Highlight: | 50HZ Environmental Test Chambers,380V Environmental Test Chambers,380V 50HZ Dust Test Chamber |
||

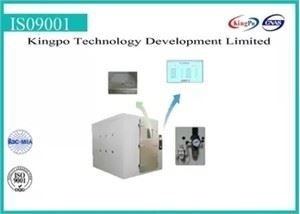

380V 50HZ Environmental Test Chambers
Stepping Type Dust Test Chamber
Function Description
The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in an excessively dusty environment,which is of scientific design and vividly simulate various environment like dusty one.Intelligent PLC control system make dust amount reaches test requirement.The top-down and non-laminar flow dust fall vertically on the sample and then vibrate the collecting funnel to circulation fan.
|
type |
KPSC-8F |
KPSC-12F |
|
Interior dimension |
D2XW2XH2M |
D2XW2XH2.8M |
|
Rated voltage |
380V 50HZ |
380V 50HZ |
|
vacuum pump(IP6X) |
0～30Kpa(optional accessories) |
0～30Kpa(optional accessories) |
|
Gas pressure(optional) |
0.5～0.8MPa |
0.5～0.8MPa |
|
Test time |
0～99h 59min |
0～99h 59min |
|
Load cycle(optional function) |
0～99h 59min |
0～99h 59min |
|
Blow period control |
1s～9999min |
1s～9999min |
|
Airflow speed |
≤2m/s |
≤2m/s |
|
Test sand(talcum powder) |
2kg/m3-4kg/m3 |
2kg/m3-4kg/m3 |
|
Exterior material |
SUS202#stainless steel/ cold rolled sheet with plastic spray |
SUS202#stainless steel/ cold rolled sheet with plastic spray |
|
Interior material |
SUS202#stainless steel |
SUS202#stainless steel |
|
Exterior dimension |
D2500 X W2700 X H3300Mm |
D2500 X W2700 X H4100Mm |
|
controller |
Independent R&D PLC touch screen controller |
Independent R&D PLC touch screen controller |
|
Power |
6KW(according to load requirements) |
6KWaccording to load requirements) |
|
Metal mesh |
nominal wire diameter 50µm,nominal spacing between wires 75µm |
|
