| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 20~25 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Material: | Stainless Steel | Standard: | IEC60598 |
|---|---|---|---|
| Weights: | One 15 N And One 30 N | Type: | Apparatus |
| High Light: | IEC60598 Stainless Steel Testing Equipment,15N Stainless Steel Testing Equipment,IEC60598 Lampholder Contacts Tester |
||

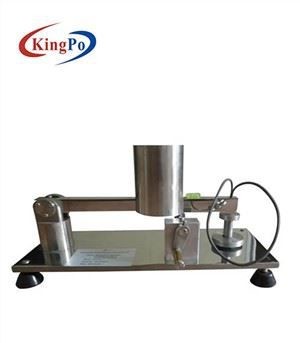

IEC60598 Stainless Steel Testing Equipment For Lampholder Contacts
Contacts Security Thrust Test Device
Product information:
The test apparatus is used to check security of lampholder contacts, avoid the lamp holder contacts shifting and the live parts of the lamp string becoming accessible which are caused by the frictions.
Technical parameters:
The test device is conform to the IEC60598-2-20 clause 113,Fig 2.
It is made of stainless steel.
Weights: one 15 N and one 30 N
Test method:
The incandescent lamp is removed and a force of 15 N is applied for 1 min to each of the conductors connected. Following this, a force of 30 N is applied for 1 min to the two conductors together. The forces are applied at a distance of 3 ± 0,8 mm from the insertion points in the lampholder so as to try to move the contacts from the lampholders. During the test the contacts shall not move more than 0,8 mm.
