| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Usage: | Scratch Resistance Test | Test Sample: | Electrical Solid Insulation Surface |
|---|---|---|---|
| Pin Head: | Cone With Angle Of 40° | Rounded Tip Radius: | 0.25mm±0.02mm |
| Mass: | 10±0.5N | Material: | Quenched Steel |
| High Light: | IEC60335 Electrical Safety Testing Probe,Scratched Pin Testing Probe,IEC60335 Threaded Taper Pin |
||

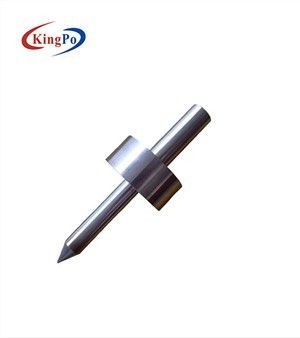

IEC60335 Electrical Safety Testing Probe Pin For Scratch Resistance Test
IEC60335-1 Clause 21 Scratched Pin For Scratch Resistance Test Of The Electrical Solid Insulation Surface
Product information:
The test pin is used to do the scratch resistant test of the electrical solid insulation surface. It conforms to the standard requirement of IEC60335-1 clause 21.
Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.
Standard:IEC60335-1 clause 21 and IEC60950-1.
Application:The test pin is used to do the scratch resistant test of the electrical solid insulation surface.
Test sample:Home appliance fixed insulation accessible part and coated printed board.
Feature:Test method: make sure the angle between the pin and the surface of the sample is 80-85°. Then use the pin which is loaded with the axial force of 10±0.5N to scratch the surface of the sample at a speed of approximately 20mm/s. This test pin can be equipped with 20N weight to reach the load of 30N.This scratched pin shall be used with resistance scratching tester.
Technical parameters:
|
Model |
HT-I34 |
|
Pin head |
A cone with the angle of 40° |
|
Tip is rounded with a radius |
0.25mm±0.02mm |
|
Mass |
10±0.5N |
|
Material |
Quenched steel |
