| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Standard: | IEC60598-2-20 Clause 20.11.2 | Thickness: | 0.5mm |
|---|---|---|---|
| Wideness: | 8mm | Rounded Tip Radius: | 4mm |
| Application: | Electronic Safety Tester | Brand: | KingPo |
Product information:

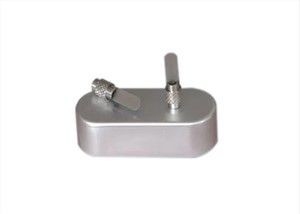

This flat probe conforms to IEC60598-2-20 clause 20.11.2. It is used for testing the string lights which can not make all of the metal intertexture or other metal decorating parts charged.
It shall not be possible to touch live parts with this probe when the probe is applied in any position of the lamp which is installed with the chain with a force not exceeding 0.5 N.
This flat probe, 0.5 mm thickness and 8 mm wideness, with a rounded tip whose radius is 4 mm. It is equipped with the handle.
Technical parameters:
| Parameters / Model | HT-I29 |
| 1 | 0.5 |
| 2 | 8 |
| 3 | R4 |
