| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Standard: | IEC61032 Figure 14 | Test Sample: | Food Waste Disposal Units |
|---|---|---|---|
| Rod Diameter: | 25mm | Length: | 80mm |
| Warranty: | 1 Year | Origin: | China |
Product information:

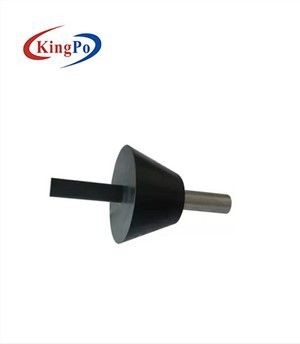

Food waste probe 31 confirms to IEC61032 figure 14 standard. It is used for checking food waste disposal units of milling system of hazardous mechanical parts whether is touched or not.
Rod: Ø25mm, 80mm long, interchangeable metal or Delrin probe. It conforms to the IEC61032 Test probe 31.The handle is made of nylon,tip is made of stainless steel.
Customizable: Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)
Standard:IEC61032 test probe 31 figure 14.
Application:It is used for checking food waste disposal units of milling system of hazardous mechanical parts whether is touched or not.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)
Main specification and corresponding technical parameters:
| Parameters /Model | Food waste probe 31 HT-I14 |
| 1 | Ф25±0.2 |
| 2 | 80±0.2 |
| 3 | Ф60±0.2 |
| 4 | Ф110±0.2 |
| 5 | 150±0.2 |
