| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Usage: | Mechanical Strengthen Test Of Openings In The Enclosure Or Internal Barriers | Standard: | IEC61032 Figure 7 |
|---|---|---|---|
| Warranty: | 1 Year | Origin: | China |
| Brand: | KingPo | Application: | Electronic Safety Tester |
| High Light: | IEC 61032 Test Finger Probe,IEC60884 Test Finger Probe,IEC 61032 Test Probe |
||

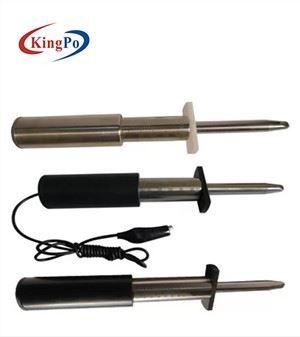

IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength
IEC61032 Figure 7 Rigid Finger Probe To Verify Mechanical Strengthen Of Openings In The Enclosure Or Internal Barrie
Products information:
This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065. It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers. Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force. There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test) Main specification and corresponding technical parameters:
|
Parameters /Model |
HT-I07 |
HT-I07T1 |
HT-I07T2 |
|
Name |
Test finger |
Test finger with 50N force |
Test finger with 75N force |
|
1 |
20 0 -0.05 |
20 0 -0.05 |
20 0 -0.05 |
|
2 |
80±0.2 |
80±0.2 |
80±0.2 |
|
3 |
R2±0.05 |
R2±0.05 |
R2±0.05 |
|
4 |
S4±0.05 |
S4±0.05 |
S4±0.05 |
|
5 |
37o 0 -10’ |
37o 0 -10’ |
37o 0 -10’ |
|
6 |
14 o 0 -10’ |
14 o 0 -10’ |
14 o 0 -10’ |
|
7 |
Ф12 0 -0.05 |
Ф12 0 -0.05 |
Ф12 0 -0.05 |
|
8 |
Ф50 |
Ф50 |
---- |
|
9 |
5±0.5 |
5±0.5 |
---- |
|
10 |
---- |
0-50N force |
0-75N force |
