| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Test Sample: | Easily Accessible Live Parts Or Mechanical Parts. | Probe Diameter: | 2.5mm |
|---|---|---|---|
| Shpere Diameter: | 35mm | Handle Diameter: | 10mm |
| Handle Length: | 100mm | Force: | Optional |
| High Light: | IEC60529 Test Rod Probe,IP3X Test Rod Probe,IP3X Long Test Probes |
||

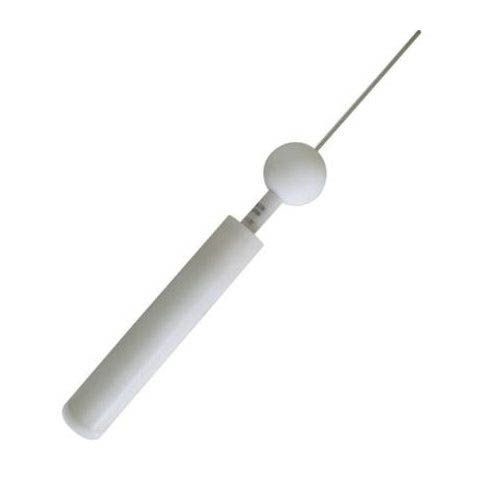

IEC60529 IP3X IEC 61032 1 Figure 3 Test Rod Probe For Mechanical Parts
IEC60529 IP3X / IEC 61032-1 Figure 3 Test Rod For Testing Easily Accessible Live Parts Or Mechanical Parts
Description:
This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a tool.
Confirm to standards:
IEC 60529 IP3X;
EN 60529 IP3X;
IEC 61032-1 Figure 3;
IEC 60065 and so on.
Test sample: Easily accessible enclosure live parts or mechanical parts.
Feature:
It can be used for anti-electric shock test when equipped with am phenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Technical parameters:
|
Model |
KP-F3C |
KP-F3CF |
|
Name |
Test rod probe C |
Test rod probe C with force |
|
Probe diameter |
2.5mm |
2.5mm |
|
Shpere diameter |
35mm |
35mm |
|
Handle diameter |
10mm |
10mm |
|
Handle length |
100mm |
– |
|
Test force |
– |
With force of 3N |
|
Applied standard |
IEC 61032-1 |
IEC 60529 |
