| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 10-20 units per month |
| Middle Finger Length: | 77mm | Middle Finger Diameter: | 11.4mm |
|---|---|---|---|
| Hand Length: | 173mm | Elbow To Wrist Length: | 235mm |
| Wrist Diameter: | 37mm | Forearm: | 37mm |
| High Light: | UL Articulated Test Finger Probe,173mm Hand Test Finger Probe,UL Articulated Finger Probe |
||

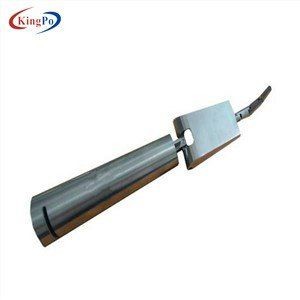

UL Articulated Test Finger Probe With Flat And Cone Shaped Hand
UL 60335-2-24 Figure 101.DVA.1 Articulate Test Finger Probe With Flat And Cone Shaped Hand 10.5 - 11.5 Year Age
Notes:
1 – The probes were designed with a center pin to rotate the hand with respect to the lower arm. That motion can be equivalently represented by rotating the probe.
2 – The finger ″tip″ is developed to match the dimensions of the UL articulated probe. The diameter from the tip to the first joint then tapers from the tip dimensions to the finger diameter. The joints are spaced equally along the finger length.
3 – The probe is designed to permit the hand to ″bend″ with respect to the arm using a hinge pin located 6 mm (0,24 in) from the hand length (wrist end) and the hand is restricted in bending not more than 90° with respect to the arm.
a If the upper arm is required to evaluate a part it shall consist of a flexible tube attached at the end of the lower arm, as the exact position of the elbow cannot be readily determined from the data points chosen.
