| Place of Origin: | China |
|---|---|
| Brand Name: | KINGPO |
| Certification: | calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Standard: | UL484 UL1598 UL1993 | Test Sample: | Luminaire |
|---|---|---|---|
| Spray Nozzle: | 3 | Pressure Gauge: | 3 |
| Dimension: | 1500×400×1500mm | Spray Pressure: | 34.5Kpa |
| High Light: | UL1993 Water Spray Test Machine,UL1598 Water Spray Test Machine,UL484 Water Spray Test Machine |
||

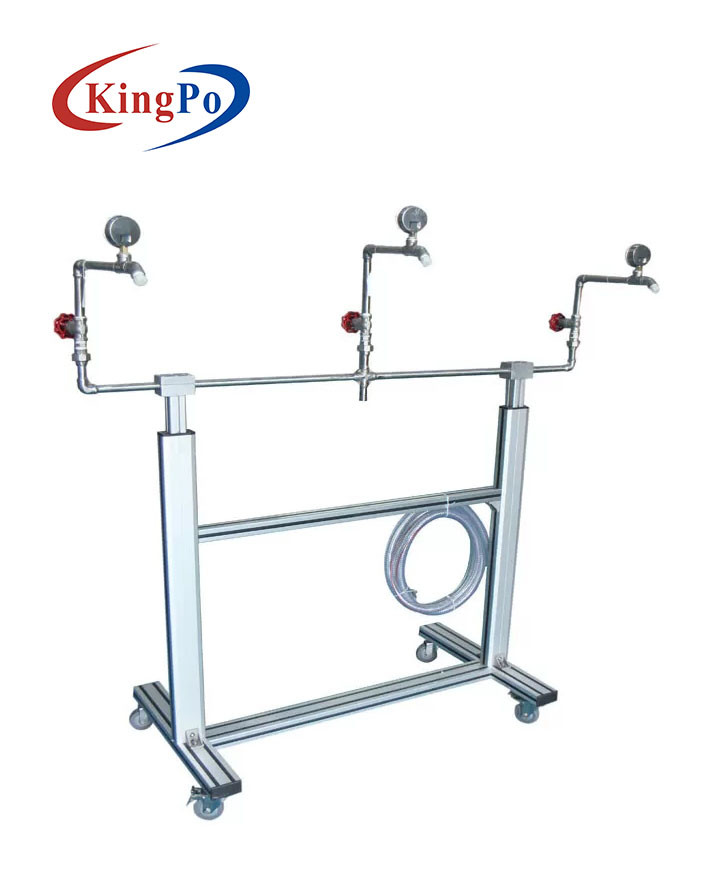

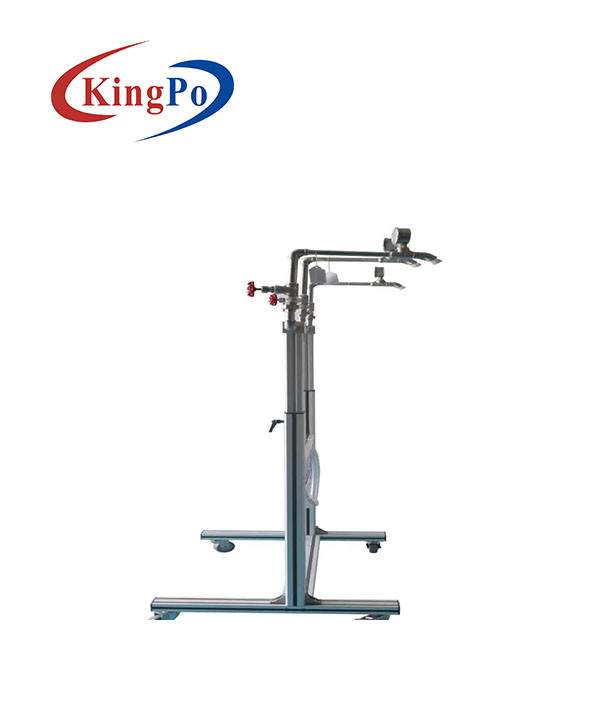

UL484 UL1598 UL1993 Water Spray Test Machine 34.5Kpa Spray Pressure
UL1598 Water Spray Test Apparatus
Description:
This equipment is a device intended for use in wet locations shall be subjected to the test described in 24.2 and 24.3. Water shall not enter the ballast or device lampholder compartments.
Confirm to standards:
UL484;
UL1598;
UL1993 and so on.
Test sample: Self-ballasted lamps and lamp adapters and other luminaires.
Feature:
Adopt aluminum structure, splash structure can be adjusted; adopt the Foma wheels, it not only can move but can fix.
Technical parameters:
|
Model |
HH0809 |
|

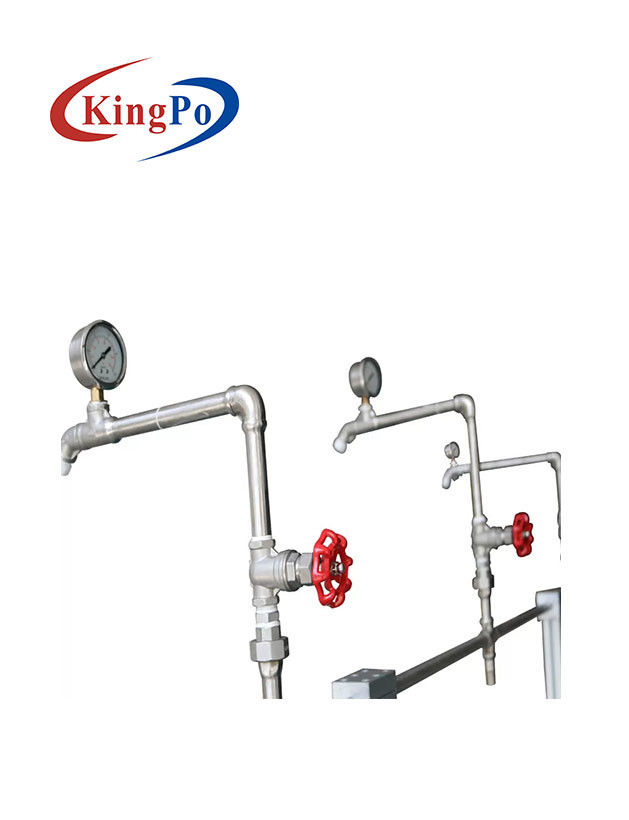

Spray head |
3, confirm to UL1598 figure 19.17.2 |
|
Nozzle spray angle |
45° |
|
Spray pressure |
34.5Kpa |
|
Structure |
Spray head distance: 710mm,confirm toUL1598 figure19.17.1, can go up and down, control valve for each spray head |
|
Pressure gauge |
3, range:0.25MPa, distance between the spray head 75mm |
|
Dimensions |
WDH=1500mm×400mm×1500mm, weight:80kg |
