| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Test Sample: | Vacuum Cleaner Hoses | Usage: | Flexing Resistance |
|---|---|---|---|
| Flexing Speed: | 10r/min | Flexing Angle: | 40°±1° |
| Mass Weight: | 5kg | Swing Arm Length: | 300±50mm |
| High Light: | Current Carrying Hoses Flexing Tester,IEC60335 Flexing Tester,Current Carrying Hoses Bending Testing Machine |
||

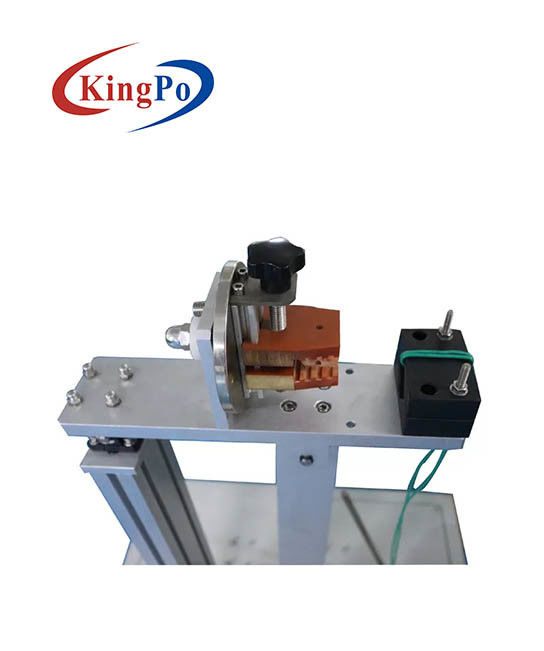

Current Carrying Hoses Flexing Tester For Vacuum Cleaner Resistance
IEC60335-2-2, clause 21.103 figure 102 Current-Carrying Hoses Flexing Tester
Standard
This device meets the standard of IEC60335-2-2, clause 21.103 figure 102.
Application
Suitable for the Current-carrying hoses flexing resistance tester.
Test sample
Vacuum cleaner hoses, water suction type cleaning apparatus tube, washing machine water pipe.
Feature
The end of the hose intended to be connected to the motorized cleaning head is attached to the pivoting arm of the test equipment shown in Figure 102. The distance between the pivot axis of the arm and the point where the hose enters the rigid part is 300mm±5mm. The arm can be raised from the horizontal position by an angle of 40°±1°. A mass of 5 kg is suspended from the other end of the hose or from a convenient point along the hose so that when the arm is in the horizontal position the mass is supported and there is no tension on the hose.
The mass slides against an inclined plate so that the maximum deflection of the hose is 3°. The arm is raised and lowered by means of a crank that rotates at a speed of 10±1 revolutions per minute.
The test is carried out for 2500 revolutions of the crank after which the fixed end of the hose is turned through 90°and the test continued for a further 2500 revolutions. The test is repeated in each of the other two 90°positions.
Parameters
|
Power supply |
AC220V 50Hz. |
|
Control and operation |
PLC intelligent electrical control, touch screen operation |
|
Working station |
1 station |
|
Flexing speed |
10r/min(that is 60°/s),can be preset |
|
Flexing angle |
40°±1°, can be preset |
|
Mass weight |
5 kg |
|
Swing arm length |
300mm±50mm |
|
Test times |
0-999999 times, can be preset |
|
Inclined metal plate |
The mass slides against an inclined plate so that the maximum deflection of the hose is 3° |
|
Size and weight |
1000×500×1100mm,100kg |
