| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Power: | AC230V, 50Hz | Standard: | IEC60884 |
|---|---|---|---|
| Operation Interface: | 7-inch Touch Screen | Control System: | PLC Control |
| Test Stroke: | 100mm | Test Rate: | 10～200mm/s |
| High Light: | IEC60884 Universal Test Machine,AC230V Universal Test Machine,IEC60884 Universal Test Equipment |
||

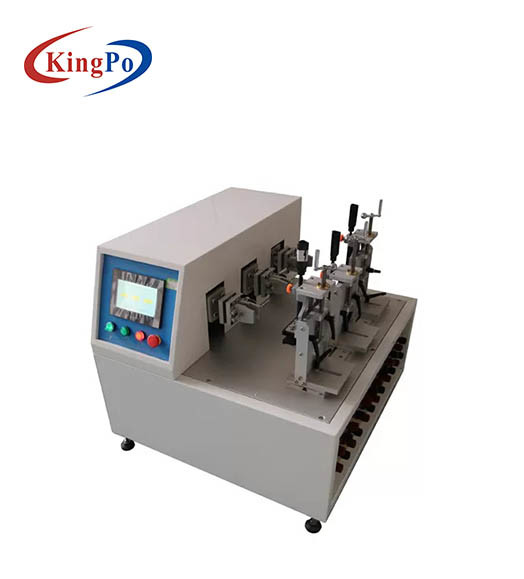

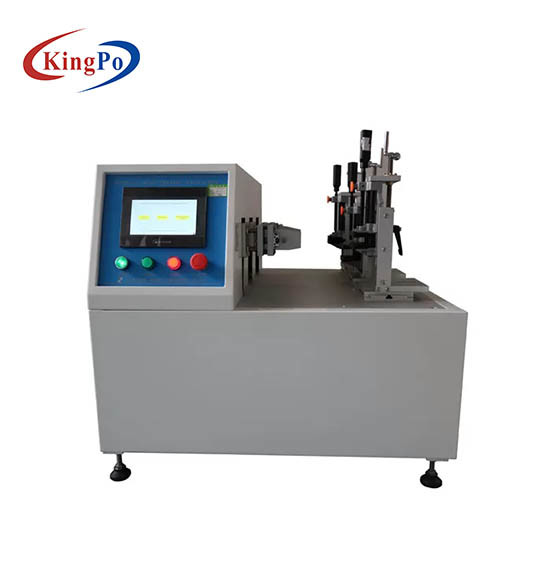

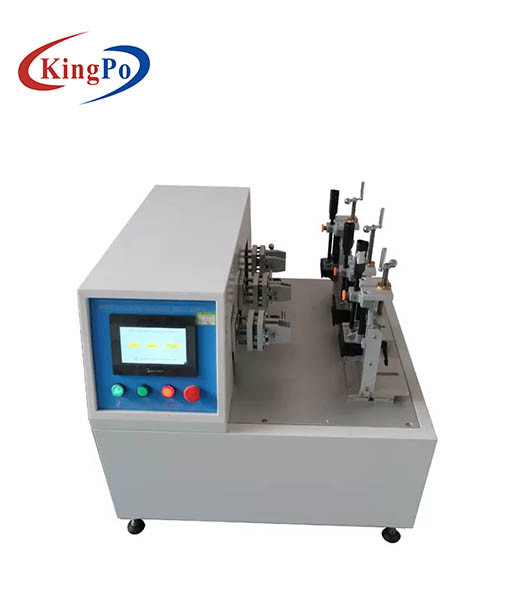

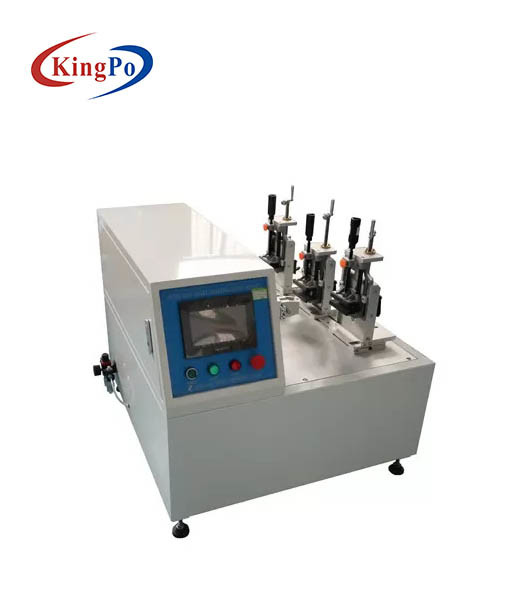

IEC60884 Universal Test Machine For Breaking Capacity Normal Operation
Breaking Capacity And Normal Operation Tester
Standard:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 20,clause 21 and figure 16.
Breaking capacity:
Accessories shall have adequate breaking capacity. Compliance is checked by testing socket-outlets and plugs with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16.
Normal operation:
Accessories shall withstand without excessive wear or other harmful effect, the mechanical, electrical and thermal stresses occurring in normal use. Compliance is checked by testing socket-outlets, and plugs with resilient earthing socketcontacts or with pins which are not solid, by means of an appropriate test apparatus, an example of which is shown in figure 16.
Application:
It is applicable for the switches breaking capacity and normal operation life test of plugs and socket-outlets for household and similar purposes.
Test sample:
Button switch, plug and socket.
Parameters:
|
Parameters Name |
Parameter Data |
|
Power |
AC230V, 50Hz |
|
Work station |
3 stations, pneumatic. Can test Button switch, plug and socket Independent control |
|
Operation interface |
7-inch touch screen |
|
Drive mode |
Precision double guide cylinder |
|
Control system |
PLC control |
|
Test times |
0～999999 times, can be preset |
|
Conduction time |
0～999.9s, can be preset |
|
Break time |
0 ~ 999.9s, can be preset |
|
Test stroke |
100mm |
|
Test rate |
10～200mm/s |
|
Test environment |
Atmospheric pressure 80 ~ 106kpa; Ambient temperature 5~ 40℃; Relative humidity (20~ 90) %RH; Use place: no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive or corrosive gas, good heat dissipation |
