| Place of Origin: | China |
|---|---|
| Brand Name: | KingPo |
| Certification: | ISO 17025 Calibration certificate |
| Minimum Order Quantity: | 1 |
| Price: | To be quoted |
| Packaging Details: | safety box |
| Delivery Time: | 25~30 working days |
| Payment Terms: | 100% TT in advance |
| Supply Ability: | 3~5 units per month |
| Standard: | UN38.3 / UL2054 | Maximum Pressure: | 1KN-13KN |
|---|---|---|---|
| Piston Diameter: | 32mm | Driving System: | Hydraulic |
| Exterior Dimension: | W940xD780xH1620 Mm | Power: | 2.0KW |
| High Light: | UL2054 EV Battery Testing Equipment,UN38.3 EV Battery Testing Equipment,UN38.3 Lithium Ion Battery Tester |
||

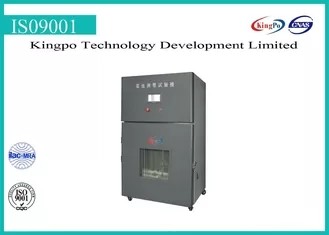

UN38.3 UL2054 EV Battery Testing Equipment Hydraulic Driving System
UN38.3 / UL2054 Battery Crush Tester
We are engaged in manufacturing, exporting and supplying an excellent quality Battery Crush Tester to our valuable clients.
Applications: Test battery safety performance through crush, after test the sample shall not explode or catch fire.This equipment becomes necessary inspection equipment for the battery manufacturer and researcher.
Standard Compliance : UN38.3, IEC62133, UL2054,UL1642,IS16046 etc.
|
type |
KP-8101 |
|
Maximum Pressure |
1KN-13KN(adjustable) |
|
piston diameter |
32mm |
|
Driving system |
hydraulic |
|
Unit shift |
Kg/N/Lb |
|
Extrusion stroke |
0~300MM |
|
Extrusion accuracy |
±1% |
|
holding time |
0~99h 99min 99s |
|
Max test space |
W370xD300xH300 mm |
|
Control mode |
PLC touch screen control system(7 inches touch screen) |
|
Exterior dimension |
W940xD780xH1620 mm |
|
Observation window |
390 X 360mm(20mm toughened explosion-proof glass) |
|
Power supply |
AC 380V 50HZ |
|
Power |
2.0KW |
